AWL-20 – 20mm Lens, IPX6, Take 9mm, 12GA and Lapua Magnum 338 Recoil
SKU:
RD085
- Motion Awake: After 4 minutes of inactivity, the AWL-20 red dot sight will enter sleep mode. When the AWL-20 red dot detects motion, it automatically turns on with your last saved brightness setting, ensuring immediate usability.
- Clear View: 20mm fully multi-coated lenses and larger aperture increase light transmission during low-light situations. 3 MOA red dot and 10 bright settings(including 2NV) provide a precise point and optimal visibility in any light conditions.
- Durability: The AWL-20 red dot sight is constructed with aluminum alloy, ensuring strength. The AWL-20 red dot is fully sealed and nitrogen-filled, making it anti-fog and IPX7 waterproof.
- IMPROVE YOUR ACCURACY & SPEED UP TARGET ACQUICITION ：Adjustments Windage and Elevation at 1/2 MOA Click.
- Easy to Use: SPINA AWL-20 reflex sight provides parallax-free and unlimited eye relief for increased accuracy, comes with a 0.83in absolute co-witness raiser mount and a low profile raiser mount, for picatinny.
Out of stock
Your privacy is important to us. Please review our privacy policy for more information.
FREE SHIPPING
Lifetime Warranty
ONLINE SUPPORT 24/7
Description
AWL-20 - 20mm Lens, IPX6, Take 9mm, 12GA and Lapua Magnum 338 Recoil
Like a sharp, precision tool, the AWL-20 red dot sight helps shooters quickly and accurately lock onto targets. Its compact design and sturdy outer shell are like an unbreakable shield, performing excellently even in harsh environments.
The vibration-activated and multi-level brightness adjustment features ensure it adapts perfectly to various conditions, guaranteeing precise aiming every time.

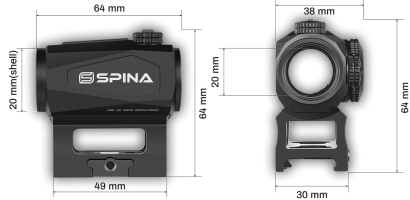

Size
Compact design, easy to carry and use, houses the CR2032 battery in a side-mounted tray for easy replacement when needed.
Mount Size
Universal mount hole pattern.

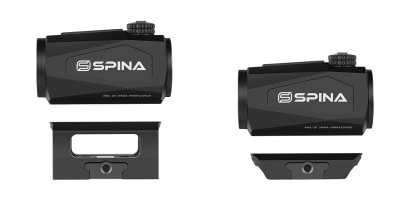

Two Types Of Base
The SYM Series features two reticle options: a 2.0 MOA round dot and a crosshair with an outer circle.
Simply press and hold the – button to switch between them.

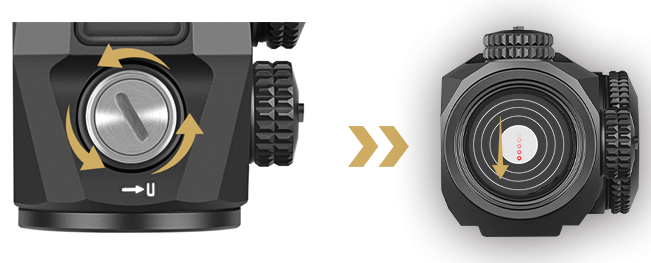

Elevation Adjustment Dot move
If you rotate in the direction of the arrow that says “UP” the dot will move Down, Menting the place your bullet will het moves Up.

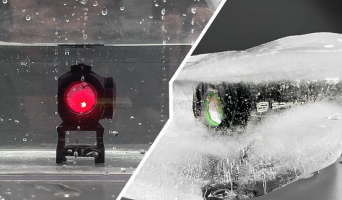

Extreme Environment Challenger
Whether you’re tracking targets in heavy rain or maintaining pinpoint accuracy in the freezing snow, this red dot sight is designed to deliver reliable performance in the harshest conditions. With an IPX7 waterproof rating, it remains fully functional even when submerged in water.
What’s more, it’s built to withstand extreme temperatures from -20°C to 50°C—whether it’s freezing or sweltering heat, it continues to perform without issue. Rain, snow, or heat, it thrives in the toughest environments, making it your dependable companion in any challenge.
Specifications
| Magnification | 0.95~1.05 times |
| Reflective Lens | Red Film Lens |
| Aim Point Size | 3MOA |
| Parallax | ≤2.0MOA in any direction |
| Parallax correction Code | 100yds |
| Light source | Red Light |
| Impact | 1500G, 5000 times |
| Waterproof | 1M, 30min |
| Storage Temperature | -20+50,2H |
| Working Temperature | -20+50,2H |
| Anti-fog Test | 0 degrees for 10 minutes, +55 degrees for 1 minute, fog dissipates within 30 seconds |
| Adjustment Range | Any Direction ≥45MOA |
| Electronic Adjustment Gear | 0-10 |
| Click Value | 0.5MOA±5% |
| Center Height | High Base:36mm; Low Base:20.9mm |
| Battery | CR2032 |
| Color | Matt Black |
| Material | 6061 Aluminum |
Features
IPX7 Waterproof Rating
With an IPX7 rating, this scope withstands immersion in 1 meter of water for up to 30 minutes, ensuring reliable performance in any weather. Stay confident and precise, no matter the conditions.
Fully Multi-Coated Lenses
Our scope’s fully multi-coated lenses deliver outstanding clarity and brightness. The multi-layer coating reduces reflections and glare, improving contrast and detail for optimal viewing in all light conditions.
Precision Adjustment
Our scope features precision adjustment controls for windage and elevation, allowing for meticulous tuning to achieve perfect accuracy. Whether adjusting for rapid target changes or challenging conditions, this system ensures optimal aiming performance.
Shockproof Design
Our scope features a shockproof design, maintaining stable performance even under intense vibrations or impacts. This ensures reliable accuracy in extreme conditions, so you can trust your aim in any environment.
High-Definition Lenses
Our scope features high-definition lenses that deliver exceptional clarity and vivid color. Every detail is sharp and clear, ensuring optimal visibility and precision in any lighting condition.
Integrated Sealed Design
Our scope features an integrated sealed design that provides total protection against dust, moisture, and other external elements. This ensures reliable performance and durability, allowing you to use it confidently in any environment.
Ratings/Reviews
FAQ'S
Have any questions?
Check out Spina Optics for in depth videos about our optics.
If you have any further questions regarding this product please submit them to allen@spinaoptics.com or call us at 86-13715447269. We really appreciate our customers feedback and will get back to you as soon as possible.
Alternatively, you can fill out the following form to inquire with us immediately.”
Do your products have a warranty?
Our Warranty is Simple:
Spina Optics Lifetime warranty will cover all variable rifle scopes (non-electro-optics) and accessories, the 5-year warranty will cover electro-optics.
The Spina Optics warranties will cover all owners regardless of original purchaser.
Contact Spina Optics to obtain a Return Merchandise Authorization (RMA) number. Please email us at allen@spinaoptics.com . Products returned without acquiring a Spina Optics RMA number will not be processed.
All warranty replacements will receive a brand-new product off the shelf or be offered a product of equal or lesser value as a replacement. We will not ever replace the product with a repaired or refurbished product.
Communication regarding product repairability or replacement will be communicated within two business days of receiving and approving of return.
