Fire-24 Red Dot Sight – Triple Reticle Options & 6061 Aluminum & IPX7
SKU:
RD087
· Triple Reticle Options– The Triple Reticle Options feature allows users to switch between three reticle patterns—a single dot, dot with circle, and dot with circle and crosshairs—providing flexibility for different shooting ranges and preferences, and enhancing aiming precision.
· RMR Footprint and 20mm rail mount– Compatibile with Handgun Reflex Sight use integrated mount for standard 20mm Picatinny or Weaver rails which will not loose, made to last.
· Durable Aluminum Construction– Rugged aircraft-grade, extruded aluminum housing ensures the optical glass and internal components are protected against firearm recoil and rough field use. 1500G Shockproof
· MULTI-COATED LENS: Optic equipment is manufactured using optical glass with multilayer coatings applied to facilitate maximum light transmission and wear resistance while reducing glare vision.
· Suitable for any high recoil bullet caliber.For example 9mm，12GA, Lapua Magnum 338Recoil，up to thousands of shots can be fired
· Inside the box – pistol red dot sight, rubber lens cover, universal pistol base, 20mm picatinny mount,lens cloth, hexagonal wrench for windage adjustment, wrench for mounting screws
Your privacy is important to us. Please review our privacy policy for more information.
FREE SHIPPING
Lifetime Warranty
ONLINE SUPPORT 24/7
Description
Fire-24 Red Dot Sight - Triple Reticle Options & 6061 Aluminum & IPX7
The Fire-24 Red Dot Sight with Triple Reticle Options allows quick switching between single dot, dot with circle, and dot with circle and crosshairs for versatile, accurate targeting in close to mid-range shooting.
Size
Compact design, easy to carry and use, houses the CR1632 battery in a side-mounted tray for easy replacement when needed.
Triple Reticle Options
The Triple Reticle Options feature allows users to switch between three reticle patterns—a single dot, dot with circle, and dot with circle and crosshairs—providing flexibility for different shooting ranges and preferences, and enhancing aiming precision.
Micro Switch
The red dot sight is equipped with a Micro Switch. If left idle for an extended period (approximately 225 seconds ±10 seconds), the red dot will automatically turn off to save power. Simply press the switch again to instantly reactivate the red dot, ensuring convenient and energy-efficient operation.
Footprint
Uses RMR footprint.
Fully Multi-Coated
This red dot sight is manufactured using optical-quality glass lenses with multilayer coatings applied to facilitate maximum light transmission and wear resistance while reducing glare and facilitating reduced power requirements.

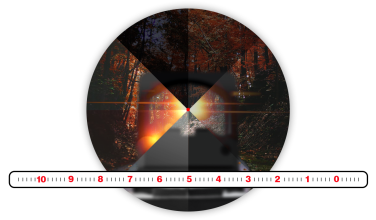

Elevation Adjustment Dot move
If you rotate in the direction of the arrow that says “UP” the dot will move Down, Menting the place your bullet will het moves Up.
Windage Adjustment Dot move
If you rotate in the direction of the arrow that says “R” the dot will move Left, Menting the place your bullet will het moves Right.
Illumination
10 LEVELS meet your use during the day or night. The clear and bright Reticle does not need to adjust the highest level even of it is sufficient during the day.
Waterproof
1m, 30min, IP67
Specifications
| Objective Diameter | 24mm |
| Parallax | Free |
| Eye Relief | Unlimited |
| Dot Size | 3MOA Red Dot |
| Click Value | 1 MOA |
| Dot Intensity | 8 Levels & 2 night vision Dot |
| Footprint | R.M.R |
| Multi-CoatingsParallax | Yes |
| Housing Material | 6061 aluminum |
| Working Temperature | -30℃~60℃ |
| Vibration | 1500G |
| Water Proof | IP67 |
| Battery Run Time | 50,000 Hours |
| Suitable for | Take 9mm, 12GA and Lapua Magnum 338 Recoil |
| Battery | CR1632 |
| Material | 6061 Aluminum |
Features
IPX7 Waterproof Rating
With an IPX7 rating, this scope withstands immersion in 1 meter of water for up to 30 minutes, ensuring reliable performance in any weather. Stay confident and precise, no matter the conditions.
Fully Multi-Coated Lenses
Our scope’s fully multi-coated lenses deliver outstanding clarity and brightness. The multi-layer coating reduces reflections and glare, improving contrast and detail for optimal viewing in all light conditions.
Precision Adjustment
Our scope features precision adjustment controls for windage and elevation, allowing for meticulous tuning to achieve perfect accuracy. Whether adjusting for rapid target changes or challenging conditions, this system ensures optimal aiming performance.

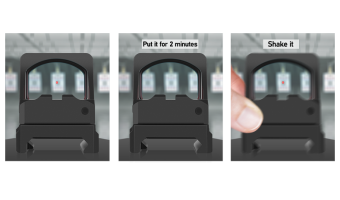

Shockproof Design
Our scope features a shockproof design, maintaining stable performance even under intense vibrations or impacts. This ensures reliable accuracy in extreme conditions, so you can trust your aim in any environment.
High-Definition Lenses
Our scope features high-definition lenses that deliver exceptional clarity and vivid color. Every detail is sharp and clear, ensuring optimal visibility and precision in any lighting condition.
Integrated Sealed Design
Our scope features an integrated sealed design that provides total protection against dust, moisture, and other external elements. This ensures reliable performance and durability, allowing you to use it confidently in any environment.
