NEX-X – RMSc Footprint, 7075 Aluminum, IPX7, Enclosed Reflex Sight
SKU:
RD108
Precision Target Capture – Red dot accuracy of 1MOA±0.1 ensures stable tracking even on fast-moving targets, giving confidence in every shot.
Ultra-Fine Micro Adjustment – 225±15-second micro switch allows the red dot to quickly restore after idle periods for pinpoint precision.
Rock-Solid Impact Resistance – Survives 800G/200 cycles and 1500G/5000 ultimate impact tests, built for the most demanding shooting conditions.
Premium 7075 Aluminum Construction – Aircraft-grade 7075 aluminum delivers superior strength and durability while keeping the sight lightweight.
All-Weather Protection – IPX7 waterproof, 1-meter immersion for 30 minutes, and operable in extreme temperatures from -20°C to +50°C.
Enclosed Reflex Sight Design – Fully enclosed housing provides superior dust, water, and shock resistance, ensuring stable aiming in any environment.
Ships from CN
Download the manual.
Your privacy is important to us. Please review our privacy policy for more information.
FREE SHIPPING
Lifetime Warranty
ONLINE SUPPORT 24/7
Description
NEX-X – RMSc Footprint, 7075 Aluminum, IPX7, Enclosed Reflex Sight
The NEX-X Reflex Sight is designed for high-intensity shooting and challenging environments, featuring an RMSc footprint compatible with a variety of firearm platforms.
Constructed from aircraft-grade 7075 aluminum, it is lightweight yet extremely strong, undergoing rigorous impact testing to ensure stable and reliable performance under extreme conditions. Its fully enclosed housing is a key highlight, providing effective dust, water, and shock resistance, keeping the red dot clear and aiming stable even in harsh environments.

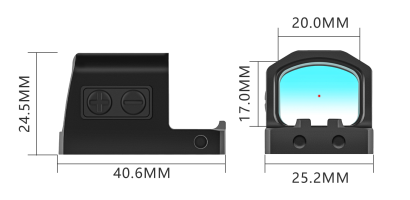

Size
Compact design, easy to carry and use, houses the CR1620 battery in a side-mounted tray for easy replacement when needed.

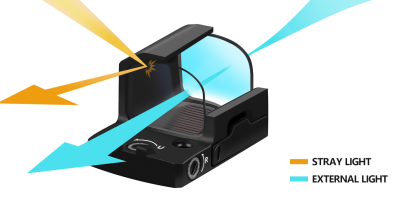

Dual-Lens Enclosed Design
Featuring a fully enclosed front and rear lens setup, it effectively blocks stray external light, minimizing glare and ghosting from the source. This ensures a clear sight picture and a stable reticle, allowing you to stay focused on your target in any lighting condition.

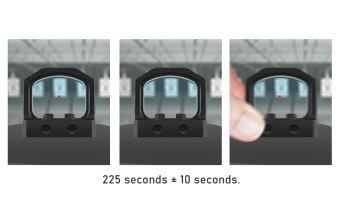

Micro Switch
The red dot sight is equipped with a Micro Switch. If left idle for an extended period (approximately 225 seconds ±10 seconds), the red dot will automatically turn off to save power. Simply press the switch again to instantly reactivate the red dot, ensuring convenient and energy-efficient operation.
Footprint
Uses RMSc footprint.
Fully Multi-Coated
This red dot sight is manufactured using optical-quality glass lenses with multilayer coatings applied to facilitate maximum light transmission and wear resistance while reducing glare and facilitating reduced power requirements.

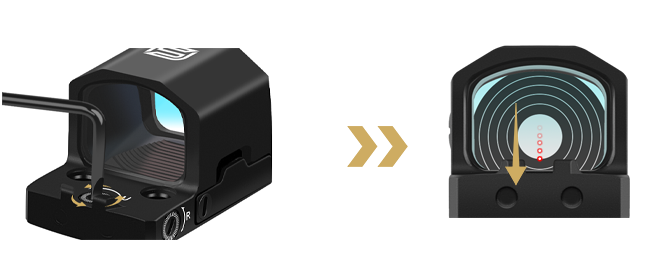

Elevation Adjustment Dot move
If you rotate in the direction of the arrow that says “UP” the dot will move Down, Menting the place your bullet will het moves Up.

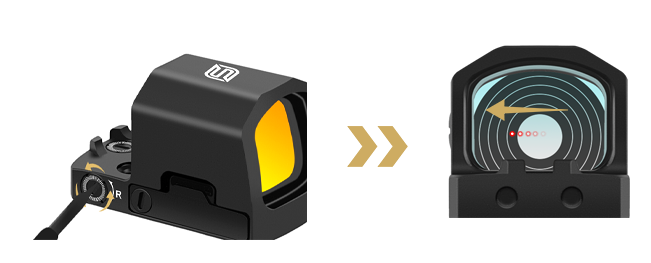

Windage Adjustment Dot move
If you rotate in the direction of the arrow that says “R” the dot will move Left, Menting the place your bullet will het moves Right.

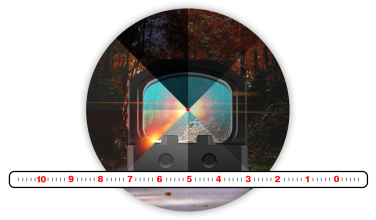

Illumination
10 LEVELS meet your use during the day or night. The clear and bright Reticle does not need to adjust the highest level even of it is sufficient during the day.

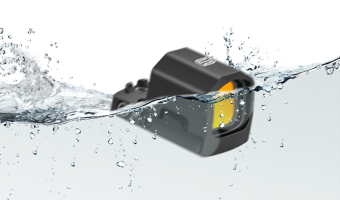

Waterproof
1m, 30min, IP67
Specifications
| Magnification | 0.95~1.05 times |
| Reflective lens | Red Film Lens |
| Aiming Point Size | 3MOA |
| Parallax | ≤2 Moa |
| Objective Lens | Clear Aperture |
| Parallax Correction | 33yds |
| Light source | Red Light |
| Impact | 800G, 200circle Ultimate test 1500G, 5000 times |
| Waterproof | 1M,30min |
| Storage Temperature | -20+50,2H |
| Working Temperature | -20+50,2H |
| Adjustment Range | Any Direction ≥ 45MOA |
| Electronic Adjustment | 0-10 Gears |
| Battery | CR1620 |
| Capture accuracy | 1MOA±0.1 |
| Micromove | 225 seconds ±15 seconds |
| Anti-fog test | 0℃, 10min, +55℃, 1min, 30 |
| Material | AL7075 |
Features
IPX7 Waterproof Rating
With an IPX7 rating, this scope withstands immersion in 1 meter of water for up to 30 minutes, ensuring reliable performance in any weather. Stay confident and precise, no matter the conditions.
Fully Multi-Coated Lenses
Our scope’s fully multi-coated lenses deliver outstanding clarity and brightness. The multi-layer coating reduces reflections and glare, improving contrast and detail for optimal viewing in all light conditions.
Precision Adjustment
Our scope features precision adjustment controls for windage and elevation, allowing for meticulous tuning to achieve perfect accuracy. Whether adjusting for rapid target changes or challenging conditions, this system ensures optimal aiming performance.
Shockproof Design
Our scope features a shockproof design, maintaining stable performance even under intense vibrations or impacts. This ensures reliable accuracy in extreme conditions, so you can trust your aim in any environment.
High-Definition Lenses
Our scope features high-definition lenses that deliver exceptional clarity and vivid color. Every detail is sharp and clear, ensuring optimal visibility and precision in any lighting condition.
Integrated Sealed Design
Our scope features an integrated sealed design that provides total protection against dust, moisture, and other external elements. This ensures reliable performance and durability, allowing you to use it confidently in any environment.
